F17 Grade Plywood PROFILE
F17 Grade Plywood is a type of film faced plywood that is used in Australia. The F17 Grade Plywood is the number one in world building industry. This standard is benchmark standards. It should have a stress grading of F17. The panel sheet should be made with hardwood and A-Bond, which is good phenol glue for the bonding.
F17 Grade Plywood Features and advantage
1 flexible, inexpensive, workable and re-usable
2 resistance to cracking, shrinkage, splitting, and twisting/warping, used instead of plain wood
3 high degree of strength and very hard to bend
F17 Grade Plywood Details
Test Item:F17 FORMWORK PLYWOOD | Grade: A BOND | AS 6669 STANDARD |
Size : | 1200x2400x17mm | Units | Test Results | Standard Deviation |
Bond Quality | Dry Condition Average Bond Quality Value | - | 8 | 0.02 |
Steam Condition Average Bond Quality Value | - | 8 | 0.01 |
Moisture Content | % | 8.62 | 0.00 |
Density (12% MC) | g/cm3 | 0.58 | 0.03 |
Formaldehyde Emissions | mg/L | 0.16 | - |
Bending Strength | Along the Face Grain Direction | MPa | 66.50 | 11.29 |
Across the Face Grain Direction | MPa | 47.71 | 14.88 |
Bending Stiffness | Along the Face Grain Direction | MPa | 9199 | 1314 |
Across the Face Grain Direction | MPa | 8137 | 1316 |
Tension Strength | Along the Face Grain Direction | MPa | 31.42 | 3.05 |
Across the Face Grain Direction | MPa | 33.14 | 7.15 |
Panel Shear Strength | Along the Face Grain Direction | MPa | 6.27 | 0.38 |
Across the Face Grain Direction | MPa | 6.02 | 0.44 |
Compression Strength | Along the Face Grain Direction | MPa | 52.18 | 4.32 |
Across the Face Grain Direction | MPa | 39.52 | 4.75 |

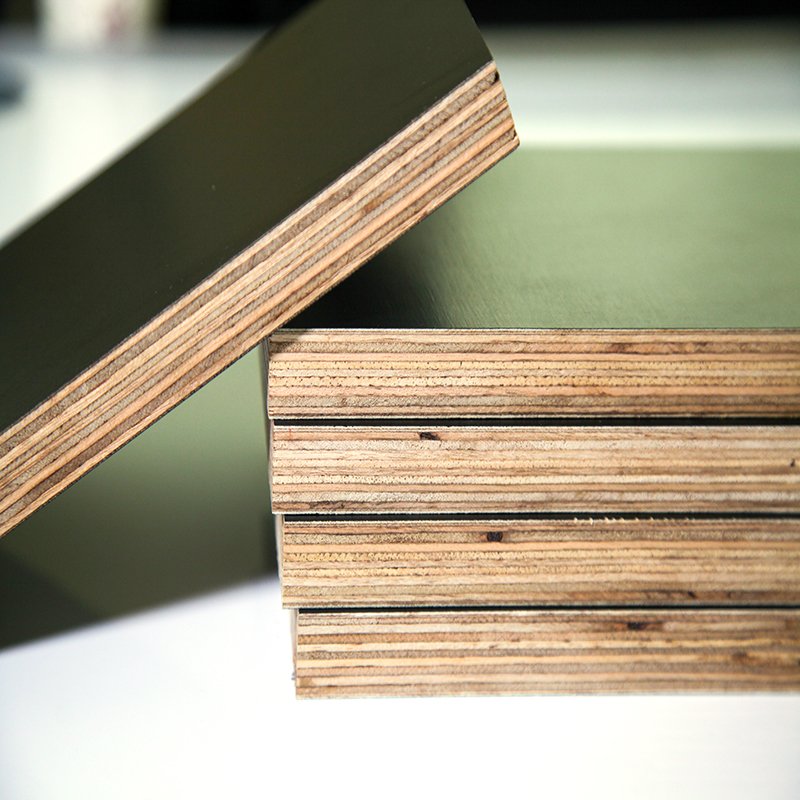

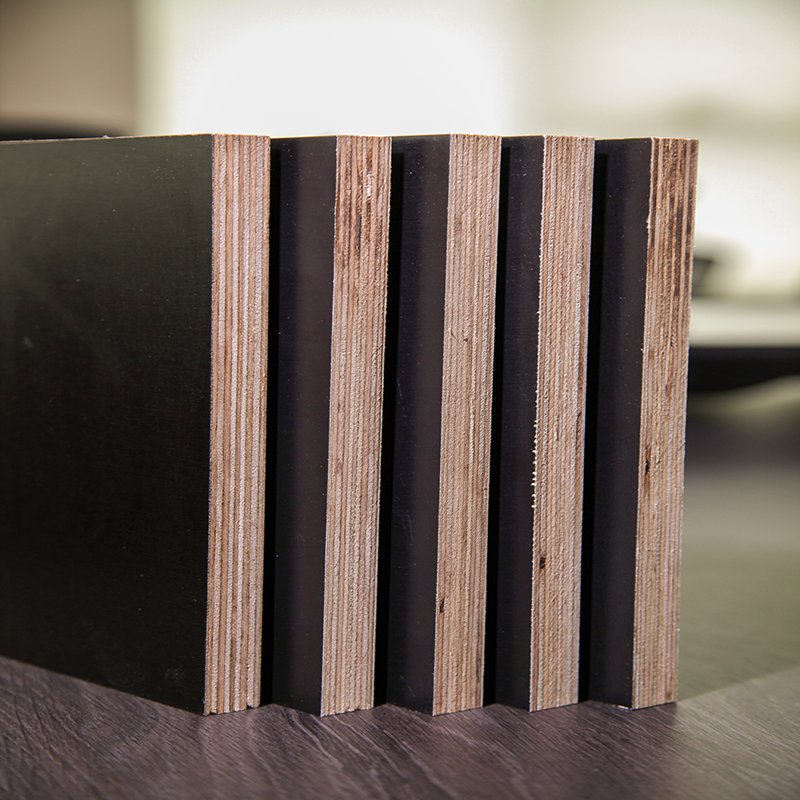

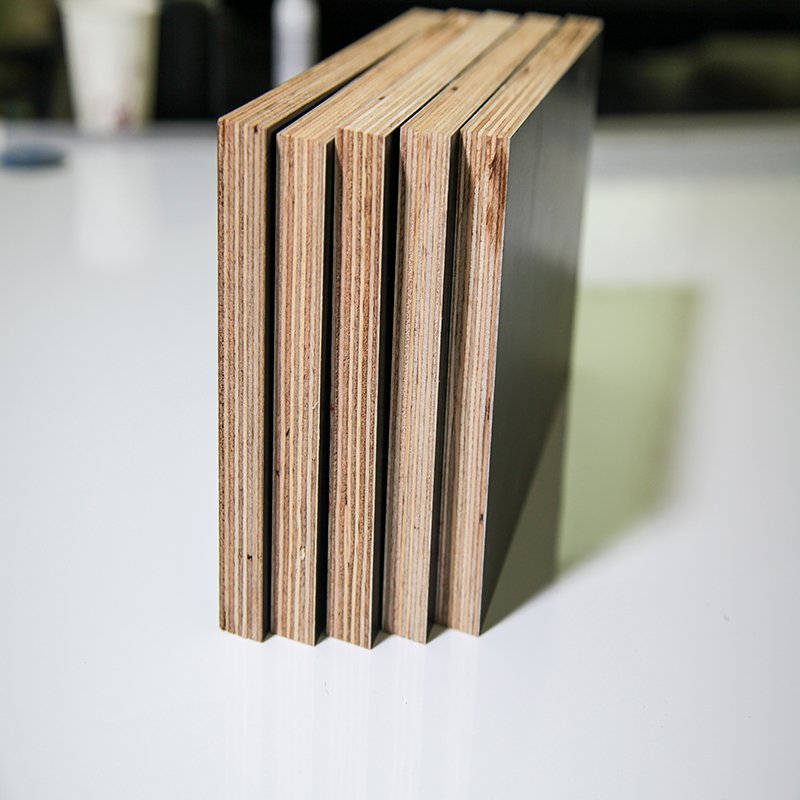

F17 Grade Plywood images

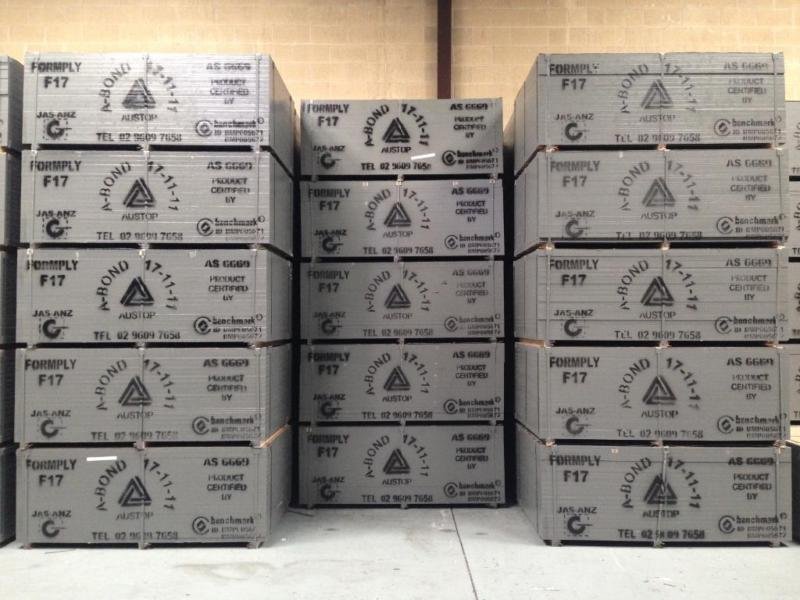

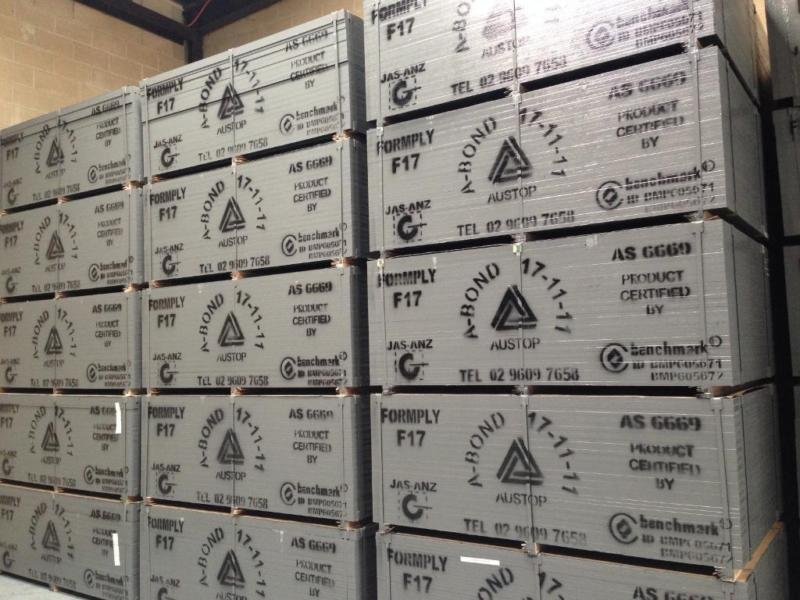

F17 Grade Plywood package
